PENOSIL
Airtight Membrane 704 Elastic seamless liquid membrane

VALUES

• Crack-bridging ability
• Sd value 1.74 m (2 mm layer)
• Air and waterproof
• Vapour permeable
• Nearly no shrinkage
• High elasticity
• Non-corrosive
• Excellent adhesion on many materials
• Can be painted
• Can be applied on humid surfaces
• Easy to apply

USAGE INSTRUCTIONS

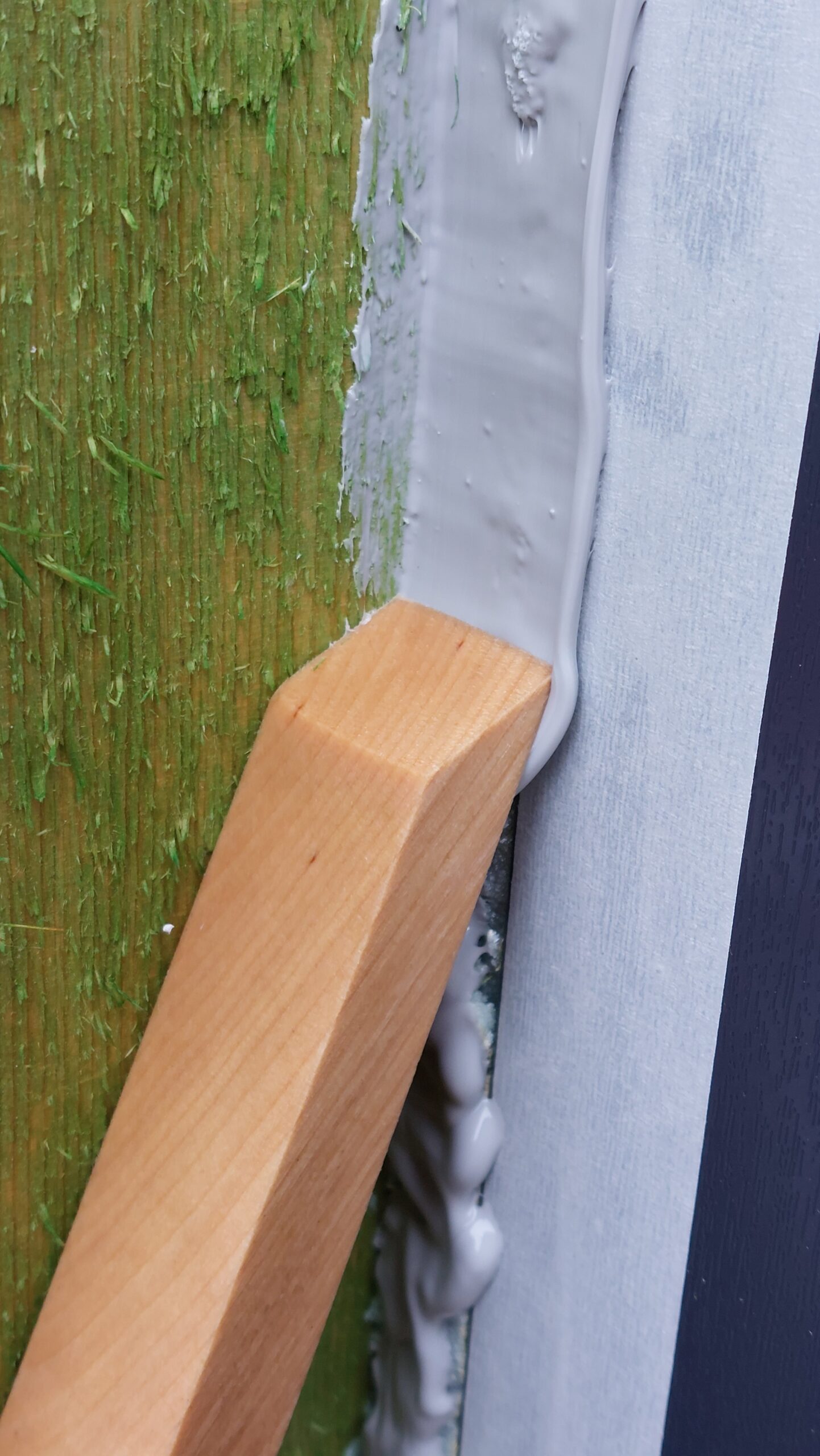

Sealing window and door joints:
Using foil pack gun: place the package into the foil pack gun. Snip the top off the foil package, just below the metal clip. Screw on the nozzle with the cap. Cut an opening to the nozzle at a 45° angle which is slightly larger than the joint to be sealed. Apply the product by keeping even pressure at the gun trigger and smoothly dragging the nozzle along the joint. Remove the excess sealant and smoothen the surface with a suitable tool. Remove the excess product and smoothen the surface with a putty knife or a flat brush. Make sure that the membrane layer is at least 1 mm thick.

Using pneumatic spray gun: Insert the product into the spray gun. Adjust the nozzle according to area to be sealed. For optimal coverage, the air pressure should be 4.6 bars and nozzle should be around 75% open. If needed, after spraying smoothen the surface with a flat brush so that the membrane layer is at least 1 mm thick.

Sealing various penetrations:
A sealing cuff or reinforcement fabric must be used when sealing penetrations. Use a putty knife or a flat brush to apply the mastic on the surface, install a sealing cuff or a reinforcement fabric and cover it again with the mastic.

TIPS

• Surfaces to be sealed must be clean, dry and free from any dust, loose particles and oil stains. Non-porous surfaces should be cleaned with solvent and a clean, non-fluffy cotton cloth. Solvent excess should be removed with a clean cloth.
• To ensure an air- and weatherproof seal, at least 10-mm-thick layer of membrane needs to be applied on window and door frames, over the cured foam and on the wall structures (both for foil pack gun and pneumatic spray gun).
• If needed, the product can be applied in 2 layers. Depending on the initial layer’s thickness, air humidity and temperature, the next layer can be applied approx. after 12 to 24 hours.
• To avoid splashing, protect window and door frames with masking tape. Remove masking tape right after application.
• Application temperature between +5°C and +40°C.
• Uncured product can be removed with PENOSIL Cleaning Wipes 941 or solvent. Cured product can be removed mechanically.
• Once cured, it is recommended to cover the mastic with a finishing material such as paint.
• Due to the wide variety of construction materials, we recommend a preliminary compatibility test. If necessary, prime surfaces to improve adhesion.

LIMITATIONS

• Does not adhere to polyethylene (PE), polypropylene (PP) or PTFE (Teflon®).
• Not suitable for expansion joints.
• In contact with bituminous surfaces, the mastics may discolour.
• Do not use at temperatures below +5°C.
• Exterior plaster might damage the membrane’s structure, it is not recommended to directly plaster over the membrane.
