PENOSIL
FireStop Intumescent Graphite Acrylic 682 Fire resistant intumescent sealant with graphite

VALUES

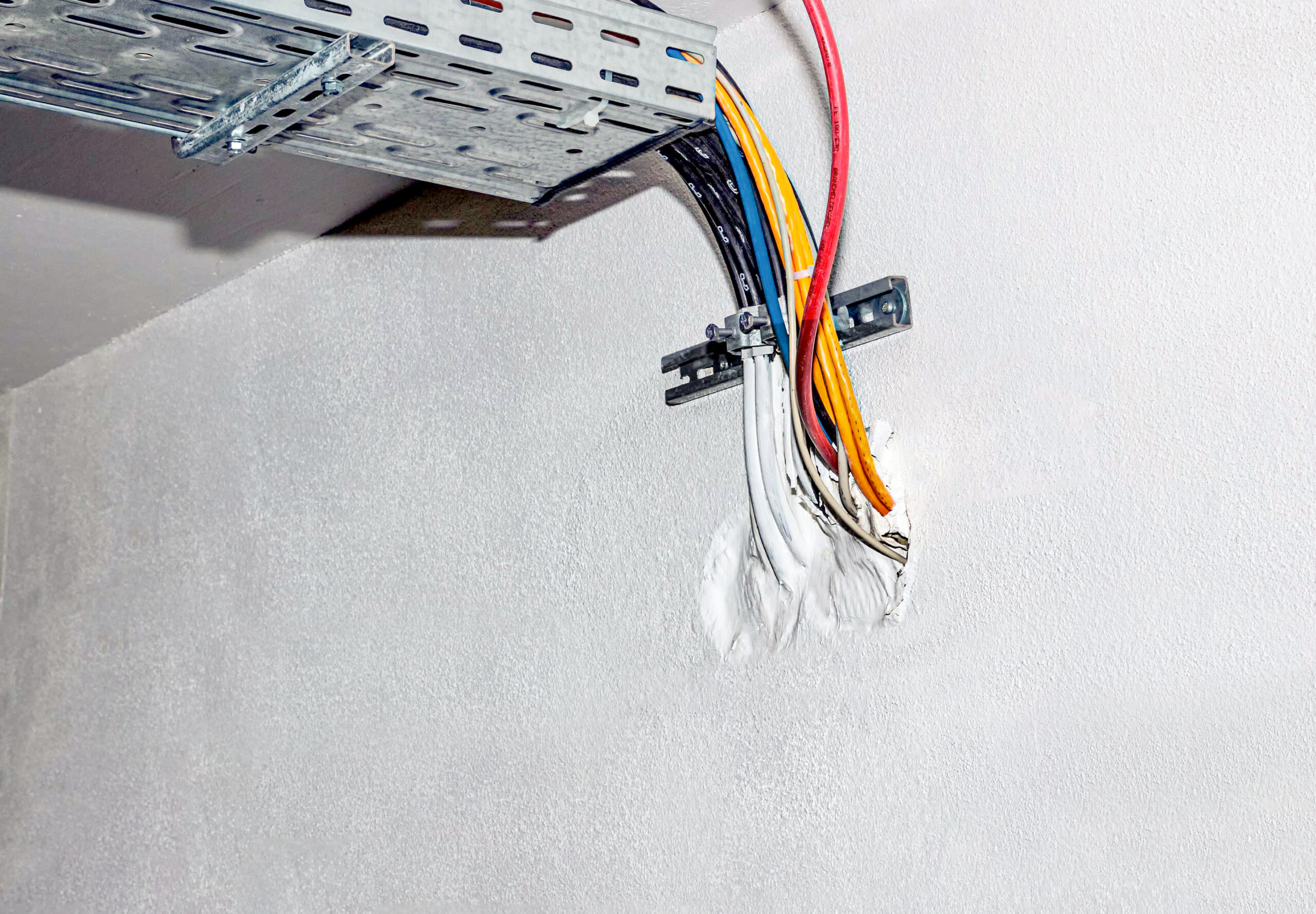

• Withstands fire up to 4 hours in a piping and linear joint
• Added graphite guarantees high expansion
• Reaction to fire C-s1,d0
• Expands with heat to prevents the passage of fire and hot gases
• Can be painted
• Halogen, solvent and asbestos free
• Excellent adhesion on many materials
• Practically odourless

USAGE INSTRUCTIONS

300 ml cartridge:
Cut the tip of the cartridge. Screw on the nozzle and cut an opening at a 45° angle which is slightly larger than the joint to be sealed.
Place the cartridge to a sealant gun.
Apply the sealant by keeping an even pressure at the gun trigger and smoothly dragging the nozzle along the joint.
Remove the excess sealant and smoothen the surface with a suitable tool.

400/600 ml foil package:
Place the package into the foil pack gun. Snip the top off the foil package, just below the metal clip. Screw on the nozzle with the cap.
Cut an opening to the nozzle at a 45° angle which is slightly larger than the joint to be sealed.
Apply the sealant by keeping even pressure at the gun trigger and smoothly dragging the nozzle along the joint.
Remove the excess sealant and smoothen the surface with a suitable tool.

TIPS

• Surfaces to be sealed must be clean, dry and free from any dust, loose particles, oil and old sealant residues. Non-porous surfaces should be cleaned with solvent and a clean, non-fluffy cotton cloth. Excess solvent should be removed with a clean cloth.
• If needed, cover the adjacent surfaces with masking tape. For wide joints, use a backer rod to ensure the joints correct thickness and shape. Ensure sufficient ventilation at the working area.
• During the curing process, make sure that the sealed surfaces stay clean and are not under mechanical stress.
• Due to the wide variety of construction materials, we recommend a preliminary compatibility test. If necessary, surfaces can be primed in order to improve the adhesion.
• Uncured product can be removed with PENOSIL Cleaning Wipes 941 or solvent. Cured product can be removed mechanically.
• Application temperature between +5°C and +40°C.

LIMITATIONS

• Cannot be applied on bitumen or on building materials which might bleed oils, plasticisers, or solvents (e.g. natural rubber, chloroprene or EPDM).
• Does not adhere to polyethylene (PE), polypropylene (PP) or PTFE (Teflon®).
• Do not use at temperatures below +5°C.
